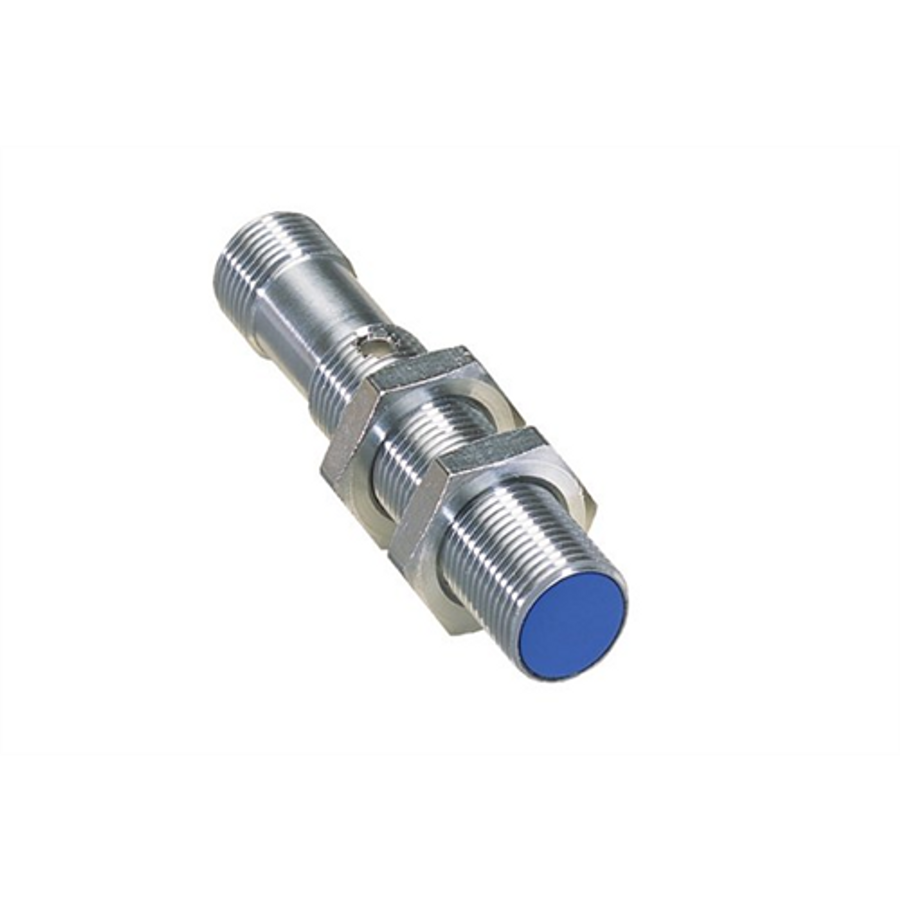

IM12-10NPS-ZC1 Induktív érzékelő

At a glance

Triple operating distance up to 10 mm

Operating temperature from -25 °C to +70 °C

High switching frequencies

Sizes M12

Your benefits

Reduced machine downtime and maintenance costs

Large operating reserve due to triple operating distance improves machine throughput - no missed targets

Saves installation space on the machine. Less space required for the same operating distance when compared with standard sensors

Lower risk of mechanical damage due their ability to be mounted further from the target

High level of sensitivity makes them suitable for detecting difficult parts such as wires, thin sheets, small screws – reduces design and installation time

Features

Housing: Cylindrical

Thread size: M12 x 1

Sensing range Sn: 10 mm

Assured sensing range Sa: 8.1 mm

Installation type: Non-flush

Switching frequency: 400 Hz

Output type: PNP

Output function: NO

Electrical wiring: DC 3-wire

Enclosure rating: IP 67 1)

Connection type: Connector M12, 4-pin

Housing: Standard

1) According to EN 60529

Mechanics/electronics

Supply voltage: 10 V DC ... 30 V DC

Ripple: ≤ 10 % 1)

Voltage drop: ≤ 2 V 2)

Power consumption: ≤ 10 mA 3)

Time delay before availability: ≤ 50 ms

Hysteresis: 1 % ... 15 %

Repeatability: ≤ 5 % 4) 5)

Temperature drift (of Sr): ± 10 %

EMC: According to EN 60947-5-2

Continuous current Ia: ≤ 200 mA

Short-circuit protection:

Reverse polarity protection:

Power-up pulse protection:

Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm

Adjustment indicator: 6)

Ambient operating temperature: -25 °C ... +70 °C

Housing material: Metal, Chrome-plated brass

Housing cap material: Plastic, PBTP

Housing length: 60 mm

Thread length: 35 mm

Tightening torque, max.: 10 Nm
