Paraméterek
| Kimenet | PNP |
| optikai érzékelő típusa | adó-vevő |
| Csatlakozás | beöntött kábeles |
| Érzékelési távolság | 1,2 m |
Leírás

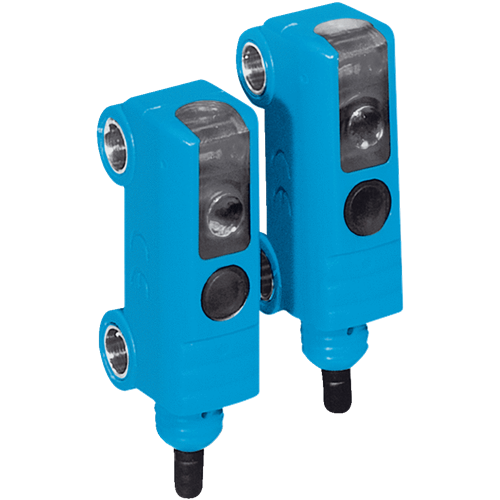

Sensor/ detection principle Through-beam photoelectric sensor
Dimensions (W x H x D) 7.6 mm x 25.1 mm x 12.5 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 1.2 m
Type of light Visible red light
Light source PinPoint LED 1)
Light spot size (distance) Ø 10 mm (100 mm)
Wave length 660 nm
Adjustment None
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ≤ 5 Vpp 2)
Switching output PNP
Switching mode Dark switching
Output current Imax. ≤ 50 mA
Response time < 2.4 ms 3)
Switching frequency 200 Hz 4)
Connection type Cable, 3-wire, 2 m 5)
Cable material PVC
Cable diameter Ø 2.4 mm
Circuit protection
A 6)
C 7)
D 8)
Weight 36 g
Reverse polarity protection ✔
Short-circuit protection ✔
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP67
IP69K
Ambient operating temperature –20 °C ... +50 °C
Ambient storage temperature –40 °C ... +75 °C
Part number of individual components 2025461 WS2S-D113 2025462 WE2S-F113
