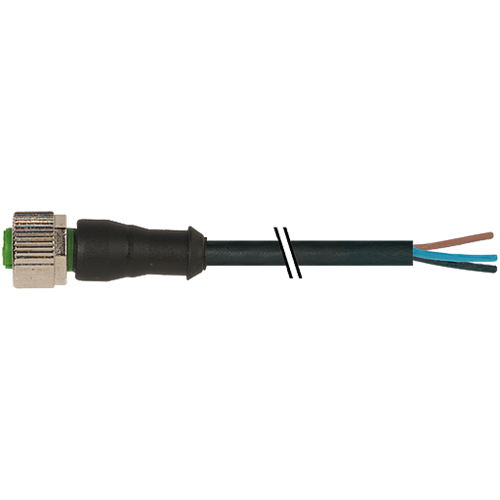

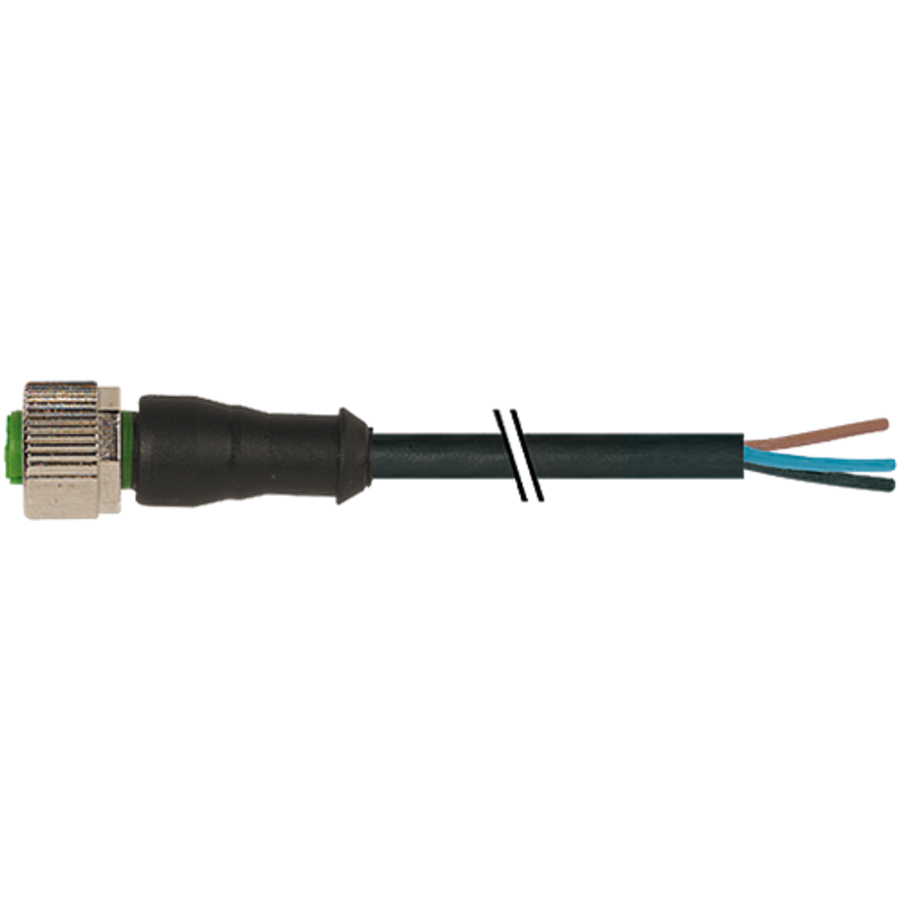

M12 anya egyenes 5 m, 5 p- 0,34 mm2 kábel
MurrelektronikLeírás és Paraméterek
TECHNICAL DATA
Operating voltage |
max. 125 V AC/DC |
Operating current per contact |
max. 4 A |
Locking of ports |
Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
CABLES
Cable number |
625 |
No./diameter of wires |
5 × 0.34 mm² |
Wire isolation |
PVC (br, wh, bl, bk, gnye) |
C-track properties |
2 Mio. |
Jacket Color |
black |
Shore hardness outer jacket |
85 ± 5A |
Material (jacket) |
PUR/PVC (UL/CSA) |
Outer Ø |
approx. 5.9 mm |
Bend radius (fixed) |
10 × outer Ø |
Bend radius (moving) |
15 × outer Ø |
Temperature range (fixed) |
-30...+80 °C |
Temperature range (mobile) |
-5...+80 °C |
Pólusok száma | ötpólusú |
Típus | anya |
Méret | M12 |
