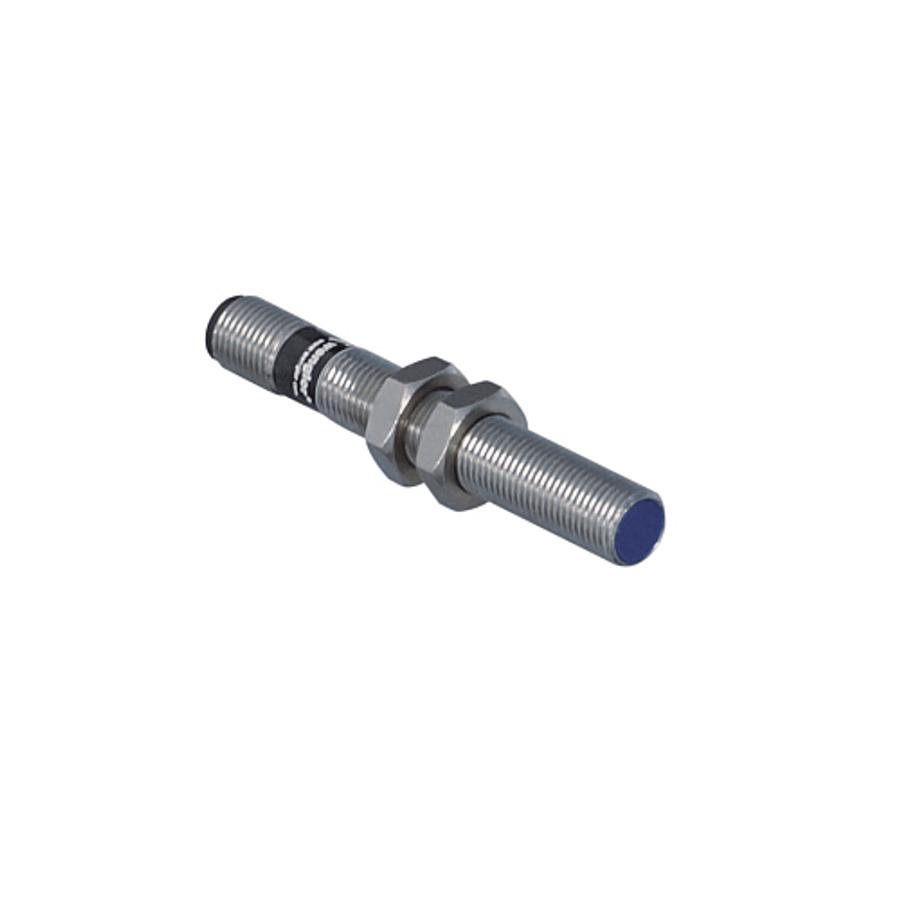

IL008BE35VB1 Induktív érzékelő


Inductive Data

Switching Distance 0,8 mm
Correction Factors Stainless Steel V2A/CuZn/Al 0,68/0,45/0,36
Mounting flush
Mounting A/B/C/D in mm 0/5/2,4/0
Switching Hysteresis < 15 %

Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 10 mA
Switching Frequency 5 kHz
Temperature Drift < 10 %
Temperature Range -25...80 °C
Switching Output Voltage Drop < 1 V
Switching Output/Switching Current 100 mA
Residual Current Switching Output < 100 µA
Short Circuit Protection yes
Reverse Polarity and Overload Protection yes
Protection Class III

Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67
Connection M5 × 0,5; 4-pin

PNP NO yes
