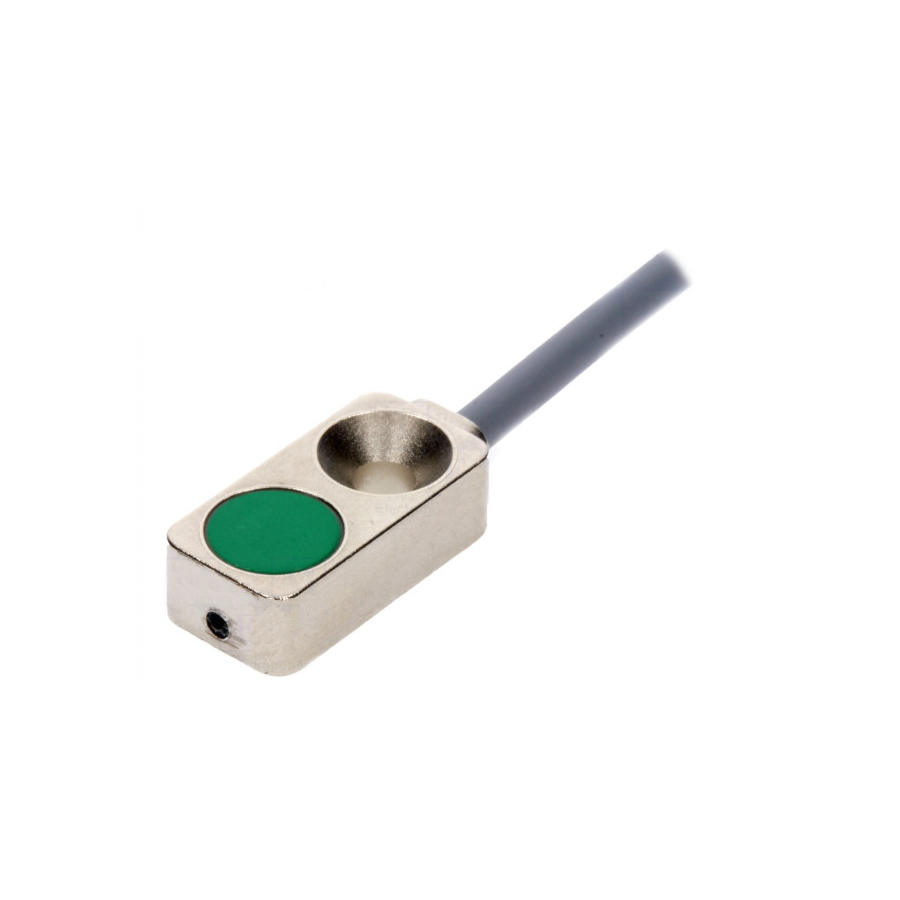

IFFM 08P17A6/KS35L Induktív érzékelő

general data

mounting type flush
nominal sensing distance Sn 2 mm
hysteresis 2 ... 20 % of Sr
output indicator LED red

electrical data

switching frequency < 5 kHz
voltage supply range +Vs 10 ... 30 VDC
current consumption max. (no load) 12 mA
output circuit PNP make function (NO)
voltage drop Vd < 2 VDC
output current < 100 mA
short circuit protection yes
reverse polarity protection yes

mechanical data
type rectangular
material (sensing face) PBT
housing material die-cast zinc nickel plated
dimension 8 mm housing length 16 mm
connection types flylead connector M8

ambient conditions
operating temperature -25 ... +75 °C
protection class IP 67
